The Graphite Beneficiation Process is the heart of industrial mineral excellence. At Pradhan Industries, we transform raw earth into high-purity crystalline carbon through a rigorous, technology-driven journey. In this guide, we break down how our Odisha-based facility achieves global standards in graphite refining.
Graphite might look like simple black dust to most people, but for us at Pradhan Industries, it is the hidden power behind today’s world. From the high-grade steel in our skyscrapers to the advanced batteries in electric vehicles, none of it would be possible without high-quality crystalline graphite.
However, there is a secret to this mineral: Graphite isn’t just “dug up” and sold. It undergoes a sophisticated journey of refinement. At our facilities in Odisha, we follow a rigorous 5-step process to transform raw ore into the world-class purity our clients expect, maintaining a Fixed Carbon (FC) range of 80-85% to 94-95% based on specific industrial requirements.
Steps Involved in our Graphite Beneficiation Process

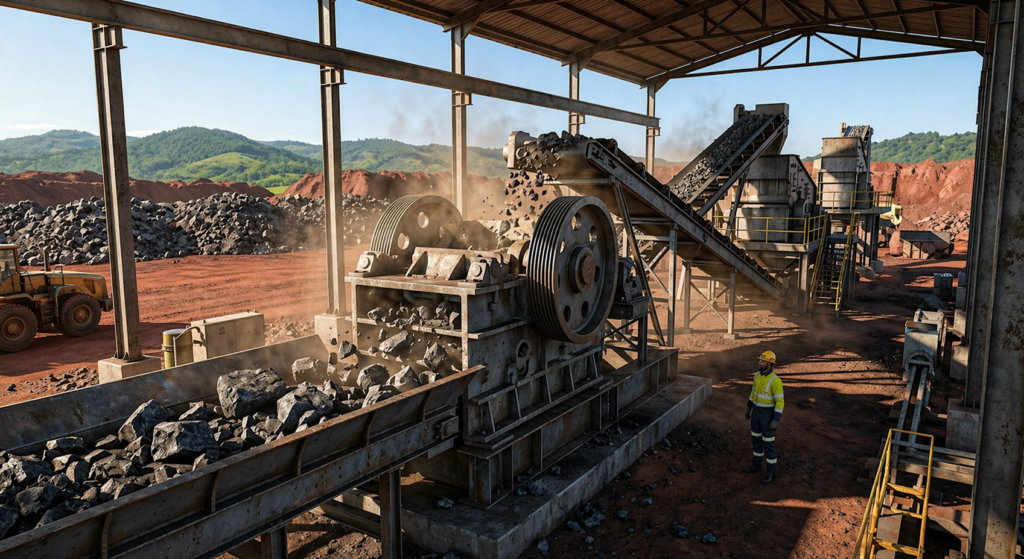

1. Crushing & Primary Grinding (The Liberation Stage)
The journey begins at the mine site. Raw graphite ore is trapped inside hard rock, and our first job is to set it free. This stage is technically known as Comminution.
-
What we do: We use heavy-duty jaw crushers to reduce the large rocks into smaller, manageable pieces.
-
Why it matters: We handle this stage with extreme precision. If you crush the ore too aggressively, you destroy the natural “Flakes.” Our goal is to liberate the graphite while keeping the flake structure intact.

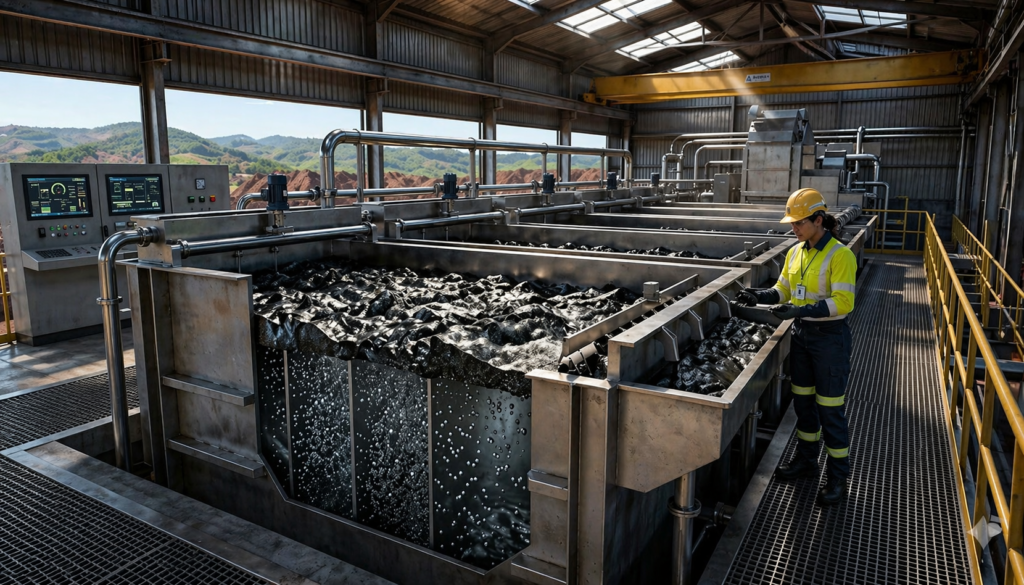

2. Froth Flotation (The Magic of Separation)
This is the most critical stage of the process. Graphite has a unique natural property—it hates water (hydrophobic) but loves air bubbles.
-
The Process: We place the crushed ore into large tanks called flotation cells. We then inject air and specific organic reagents into the mixture.
-
The Result: The pure graphite flakes cling to the air bubbles and float to the surface like a silver foam. The unwanted earth and stone (the gangue) sink to the bottom. This allows us to “skim” the high-purity carbon off the top.
3. Regrinding & Scavenging (The Polishing Stage)
Even after flotation, some microscopic impurities can remain attached to the flakes. To reach our targeted 94-95% Fixed Carbon purity, we perform a second round of light grinding. This “polishes” the flakes, rubbing away the final layers of ash and silica without reducing the flake size.
4. De-watering & Drying (Moisture Control)
Now we have pure graphite, but it is soaking wet from the flotation tanks. Industrial buyers require “Bone Dry” material because moisture can ruin a manufacturing batch.
-
The Process: We pass the graphite through high-capacity vacuum filters and industrial dryers. We ensure the final moisture content is below 0.5%, making it stable and ready for global shipping.

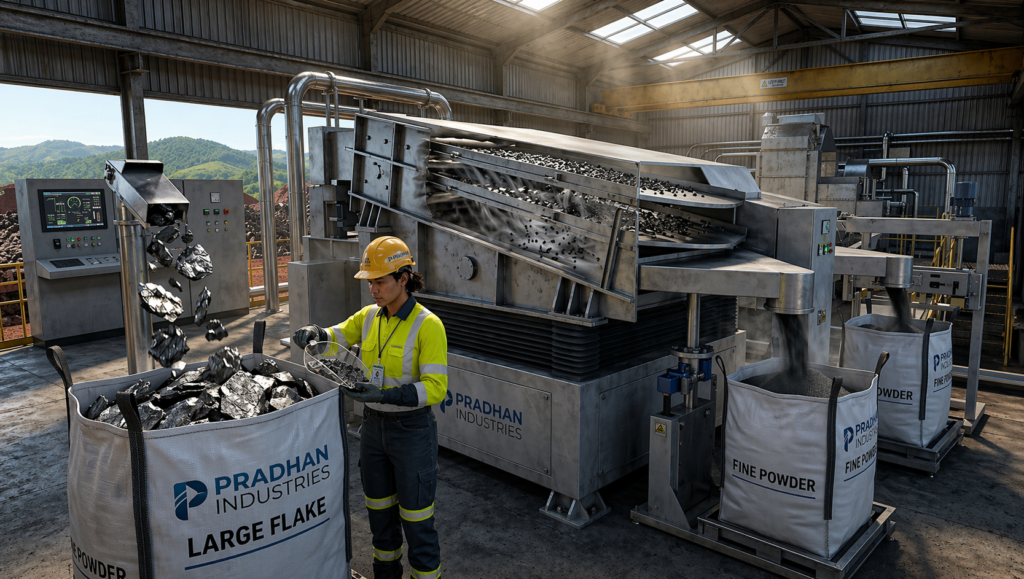

5. Classification & Screening (The Sizing Stage)
The final step is all about precision. Every industry has a specific size requirement. We use high-frequency vibrating screens to sort the graphite into different grades.
-
Mesh Sizes: This is where we separate the “Large Flakes” (+80 Mesh) from the “Fine Powders” (-300 Mesh), ensuring every bag we pack meets the client’s exact Technical Data Sheet (TDS).
Understanding Mesh Sizes: Why It Matters
In our industry, size is everything. A machine designed for fine powder will fail if you give it large flakes.
-
Large Flakes (+80 Mesh): These are prized for their thermal stability. They are the backbone of the steel and refractory industries.
-
Fine Powders (-300 Mesh): These are as smooth as silk. They are essential for high-end lubricants, friction materials, and specialized coatings.
The Pradhan Promise: Verified Purity
We don’t just claim purity; we prove it. Every single batch processed at Pradhan Industries is tested in our NABL-certified laboratories. We monitor:
-
Fixed Carbon (FC): Consistently maintained within the 80-85% to 94-95% range, ensuring reliability for diverse applications.
-
Ash Content: Minimized to prevent contamination in your smelting or manufacturing process.
-
Consistency: Ensuring the grain size you ordered is the grain size you get.
Conclusion: A 50-Year Legacy of Trust
At Pradhan Industries, we aren’t just selling a mineral; we are delivering a promise. With over five decades of experience in the mineral-rich belt of Odisha, we understand that your factory’s performance depends on our product’s quality. Whether you are building the next generation of EV batteries or producing high-grade steel, we provide the carbon solutions that power your success.
